CIDR vs Subnet Mask Explained With Real Examples

CIDR and subnet masks are two ways of expressing the same network boundary. That sounds simple, but this is exactly where a lot of people get stuck when they move from “I kind of recognize /24” to actually planning subnets, checking host ranges, and reading firewall or routing configs without guessing.

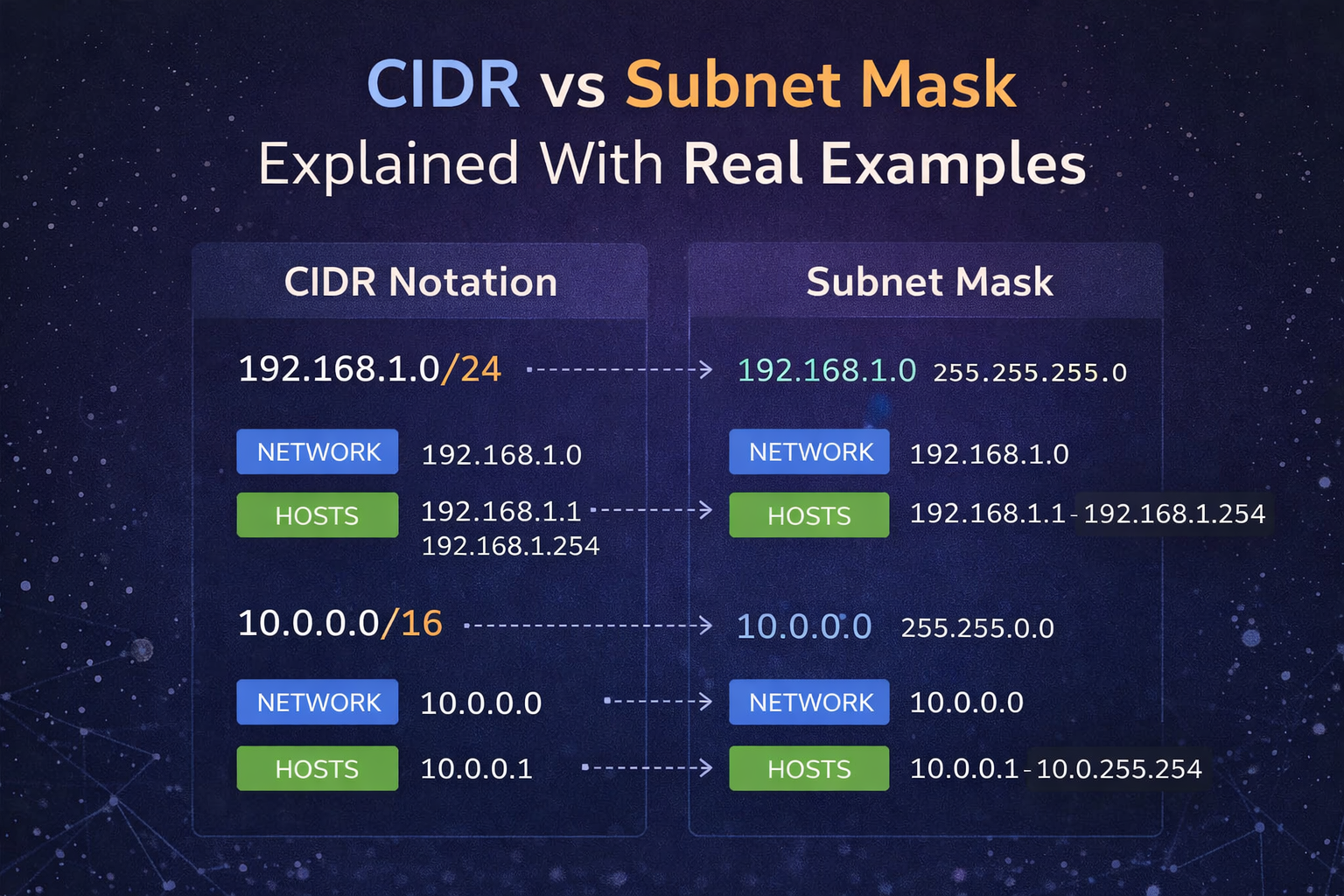

One concept, two formats

• /24 means 24 network bits

• 255.255.255.0 expresses the same boundary in mask form

The important thing to understand is that these are not competing systems. They are two ways of describing the same split between network bits and host bits.

The practical question is not which format is more “correct.” The practical question is whether you can translate between them quickly enough to plan and troubleshoot networks correctly.

Common examples

• /24 = 255.255.255.0

• /26 = 255.255.255.192

• /30 = 255.255.255.252

• /31 = 255.255.255.254

• /32 = 255.255.255.255

Use Subnet Calculator when you want the full range, broadcast, wildcard mask, and host counts without doing everything manually.

Why people get confused

The confusion usually comes from switching contexts:

• cloud dashboards often show prefix length like /27

• older networking material often uses dotted-decimal masks

• firewall rules may use wildcard masks instead

• vendor docs may mix all three in the same explanation

So the issue is not usually math first. The issue is translation speed and confidence.

Real example: /26

Take 192.168.10.34/26.

What does that tell you?

• subnet mask is 255.255.255.192

• block size is 64

• the available blocks in the last octet are:

  • 0-63

  • 64-127

  • 128-191

  • 192-255

Since 34 falls into 0-63, the subnet is:

• network: 192.168.10.0

• broadcast: 192.168.10.63

• usable range: 192.168.10.1 - 192.168.10.62

That is the kind of reasoning you want to be able to do, even if you still use a calculator for speed.

Real example: /30

Take 10.0.5.13/30.

The subnet mask is 255.255.255.252, which means block size 4 in the last octet. The ranges are:

• 8-11

• 12-15

• 16-19

Since 13 falls inside 12-15, the result is:

• network: 10.0.5.12

• broadcast: 10.0.5.15

• usable hosts: 10.0.5.13 and 10.0.5.14

This is why /30 is common on very small routed links.

Why this matters in real work

You need this translation when:

• planning VLANs

• writing firewall rules

• validating point-to-point links

• allocating host ranges

• reading vendor docs that use one notation while your system uses another

If you do not understand the translation, you end up making mistakes like:

• assigning a host outside the usable range

• putting two point-to-point links in overlapping space

• using the wrong wildcard mask in an ACL

• assuming /31 behaves like a normal LAN subnet

Common mental shortcut

If you are trying to work fast, a useful shortcut is:

1. turn the prefix into a mask

2. find the interesting octet

3. calculate block size as 256 - mask

4. find the block that contains your IP

That gives you the network and broadcast range without memorizing every scenario.
